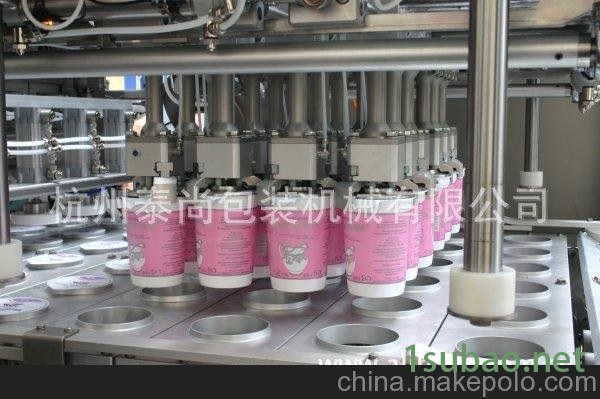

纸（塑）杯灌装封口机

设备简介
BWF-24 全自动纸（塑）杯灌装封口机适用于酸奶、牛奶、饮料、调味品等的包装，能自动完成纸（塑）      预制杯的灌装、加盖、封口、日期打印、加罩和成品输送。主要执行机构均采用伺服电机驱动，同步化传      动设计，设备主要部件均采用国内外知名品牌，整机运行平稳安全，低噪高效。
This machine can be pack yogurt, milk, drink, condiment, etc. It can automatically accomplish       prefabricating cup, filling, capping, sealing, date printing, covering and delivery. Its main       executive agencies adopts servo motor drive, synchronization transmission,most parts are made       by international famous companies. This machine works stabely and safely, with low noise and      high efficiency.

功能特点
      独特的灌装系统，提高了灌装精度，同时降低了在灌装过程中对物料的剪切力，保留了物料粘稠度
Unique filling system, improving the filling accuracy, and reducing the shear force to the
      material while filling, it also keeps the material viscosity
灌装前真空吸尘装置可将预制杯内的残留物体清除
Before filling, vacuum device can clear residual objects in theprefabricated cup
在线移动式喷码装置，可以对产品进行精确定位喷码
online mobile printing equipment can lacate the code to the production accurately
预制杯自动储存机构，自动完成送机上架
Prefabricated cup automatic storage institutions, and sent the cup to the rack automaticly

选配装置
      卷膜热封、冲压装置
Film heat sealing, pressing device
      CIP清洗装置
CIP cleaning device
      100级层流保护系统
Level 100 laminar protection system

技术参数
  产品型号 Model BWF-24
电 源 Power supply 380VAC/50Hz
总 功 率 Power 5-18 KW
产 量Output（150ml） 3000 -20000/h
气 压 Air pressureMPa 0.75-0.90MPa
耗 气 量 Air consumption 0.6 -1.6 m3/min
设备尺寸 Size(LXWXH) 9800x2400X3200(mm)
重 量 Weight 4000Kg
