【合肥PXSDXPC安装】温度补偿压力传感器

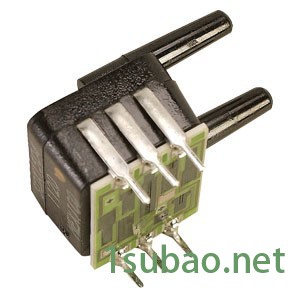

The PXSDX sensors are high performance silicon sensors with internally calibrated outputs to allow interchangeability within systems. These temperature compensated sensors give a stable, accurate reading over a range of 0 to 50°C (32 to 122°F). They are intended for applications with non-corrosive, non-ionic gases such as air and many common industrial and laboratory gases.
Specifications
@ 12 Vdc, 25°C (77°F)
Excitation: 12 Vdc typical (20 Vdc maximum)
Output mV (@ 12 Vdc) Ratiometric
5 inH2O: 20.0 ±0.5 mV
10 inH2O: 25.0 ±0.5 mV
1 psi: 18.00 +0.80, -0.18 mV
5 psi: 60 ±0.60 mV
15 to 60 psi: 90.00 ±0.10 mV
100 psi: 100.00 ±1.0 mV
Zero Offset: ±0.3 mV (inH2O Ranges: ±1 mV)
Linearity, Hysteresis Error: ±0.1% typical, ±0.25% maximum (inH2O Ranges: ±0.2% typical, ±1% maximum)
Response Time (90%): 100 μsec
Long Term Stability (1-Year): ±0.1% full scale
Operating Temperature: -40 to 85°C (-40 to 185°F)
Compensated Temperature: 0 to 50°C (32 to 122°F)
Thermal Effects
Zero Shift: ±0.2 mV typical ±0.5 mV maximum (inH2O Ranges: ±0.2% typical, ±0.6% maximum)
Span Shift: ±0.4% full scale typical ±1.0% FS maximum (inH2O Ranges: ±0.2% typical, ±1% maximum)
Input Impedance: 4 kΩ
Output Impedance: 4 kΩ
Proof Pressure:
inH2O Ranges: 193 inH2O (7 psi)
1 and 5 psi (g and d) Ranges: 30 psi
15 psi (g and d) Ranges: 30 psi
15 psia Range: 30 psia
30 psi (g and d) Ranges: 60 psi
30 psia Range: 60 psia
100 psi (g and d) Ranges: 150 psi
100 psia Range: 150 psia
Common Mode Pressure:
inH2O Ranges: 50 psi maximum 150 psi maximum
Lead Soldering Temperature: 250°C (482°F) maximum
Weight: 2 g (0.06 oz)
Notes: P1 is top port and absolute models have top port only of the differential package. D4 is differential and absolute A2 is gage pressure.
